Embedded Home Appliance Controller
Control-panel electronics for a slicer, combining Start/Stop operation, three-speed selection and LED feedback in a 142 × 50 mm board.
Overview

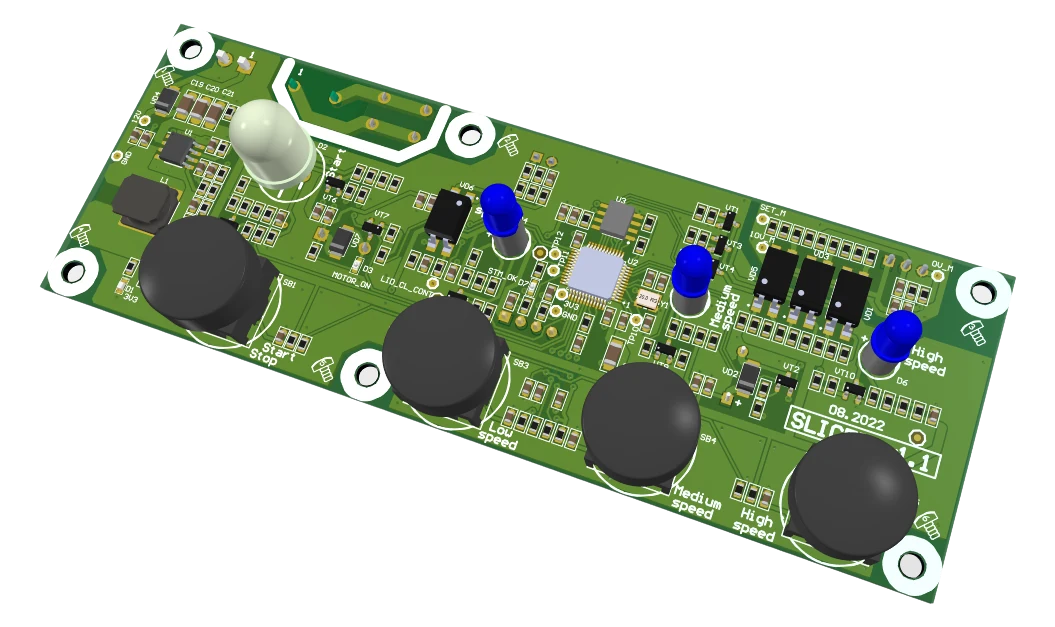

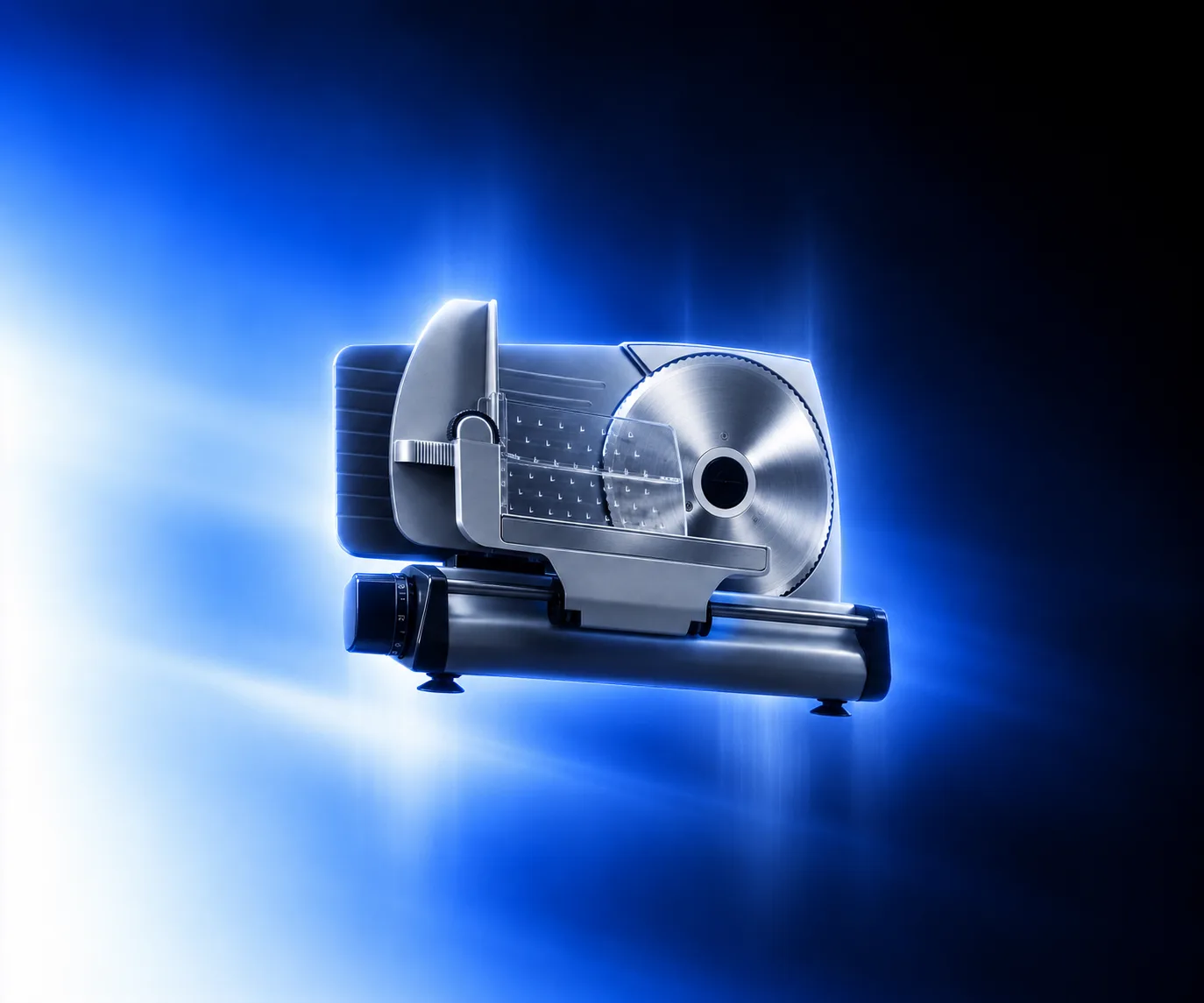

This control-panel board was developed for a slicer. It provides Start/Stop operation, selection between three speeds and LED feedback through the appliance’s local interface.
- Control & Measurement
- Embedded Control
- PCB Design
- User Interface

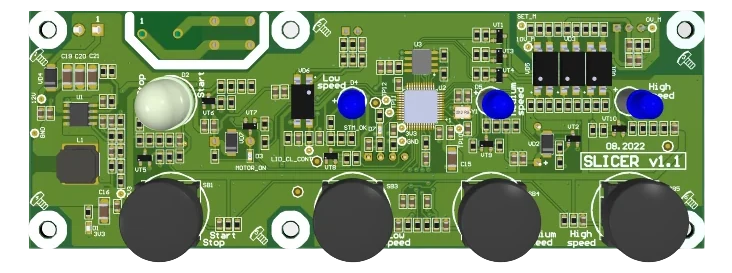

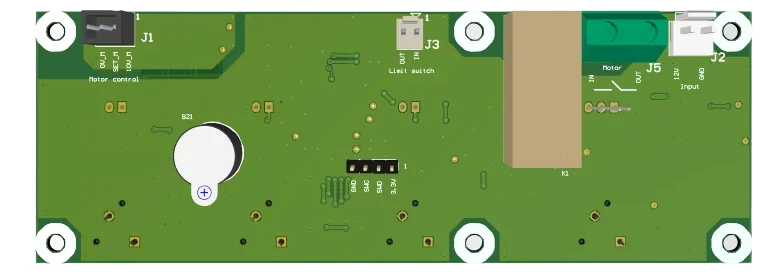

The electronics fit a 142 × 50 mm board arranged around the physical controls and indicators.
Challenge
Fit the appliance’s operating controls and visual feedback into the available panel area. The task is a focused electronics and user-interface design: give the operator direct access to Start/Stop and three speed settings within the defined board outline.
What We Did
HTS developed the custom control-panel electronics and PCB arrangement for the appliance. The design brings together the Start/Stop control, speed-selection buttons and LED indicators in the required form factor.
System
- User input
- Physical buttons provide Start/Stop operation and speed selection.
- User feedback
- LEDs indicate the selected operating mode and device status through the control panel.
- Integration
- The board layout follows the appliance’s control-panel geometry.
Technical Details
| Parameter | Specification |
|---|---|
| Application | Slicer control panel |
| Board dimensions | 142 × 50 mm |
| Speed settings | 3 |
| Local controls | Start/Stop and speed selection |
| Feedback | LED indicators |
Result
The resulting board consolidates the appliance’s local controls and indicators in one panel-sized electronic assembly design. It is a focused example of custom electronics adapted to an existing product interface.
