Multi-sensor control + MQTT
Smart Telemetry System
A platform for temperature, airflow, product-weight and current monitoring, with automatic operation and MQTT remote control over Wi-Fi or LTE.
Overview
Smart Telemetry combines several equipment-monitoring and control functions on one board. It handles internal and external temperature, product weight, airflow and current-consumption monitoring.
- Control & Measurement
- Industrial IoT
- Wi-Fi
- LTE
- MQTT
The system supports automatic operation and remote control through a server using MQTT. A mobile application provides settings and user interaction, while Wi-Fi and LTE connect the equipment to external software.
Challenge
Bring several measurement channels, automatic operating logic and remote control into one embedded platform. The electronics and firmware need to connect sensor data to equipment behaviour and expose the relevant information to mobile and server software.
What We Did

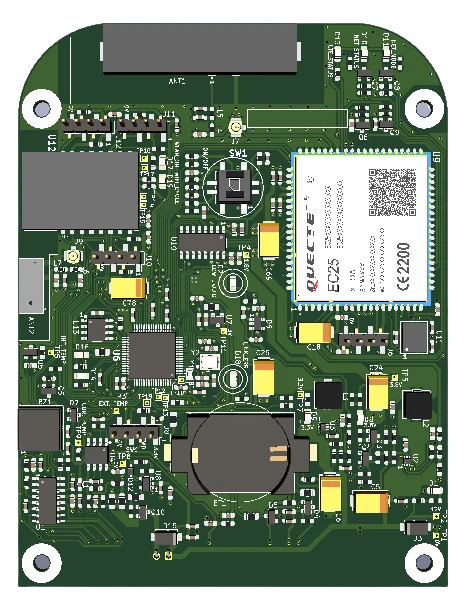

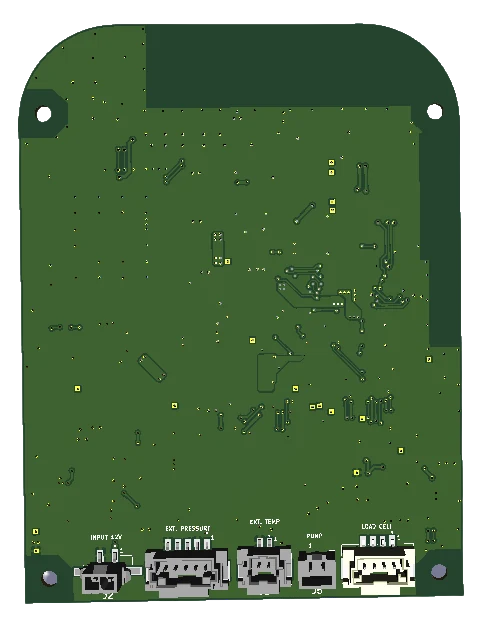

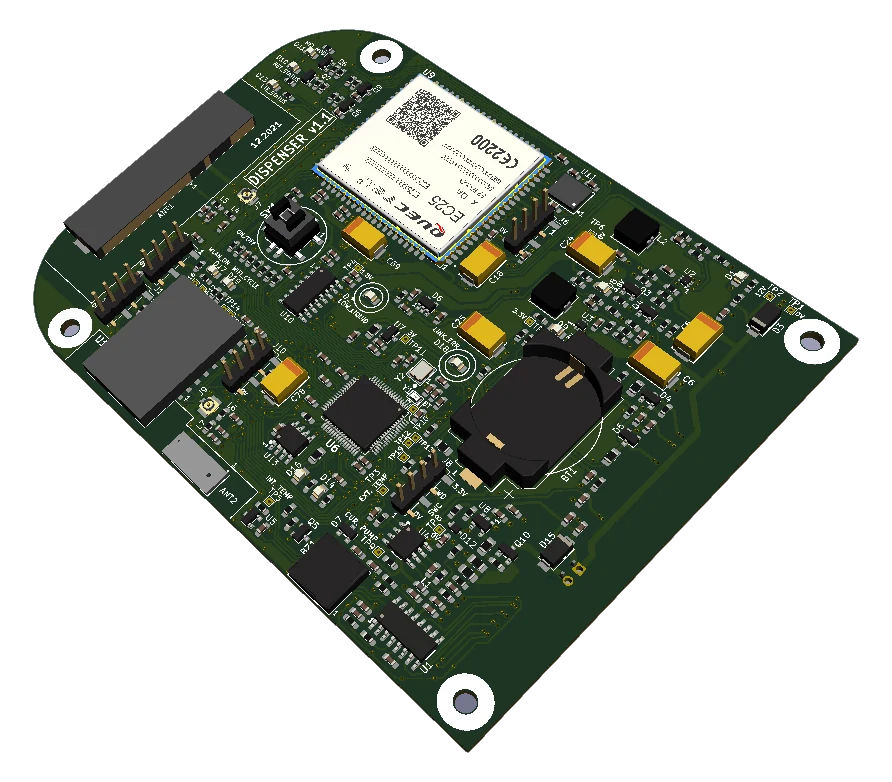

HTS developed the telemetry/control electronics and embedded functionality, including multi-sensor acquisition, automatic modes and MQTT-based server communication. The design combines an STM32 controller, a 24-bit ADC, Wi-Fi and LTE with eSIM, and application-based configuration.
System
- Measurement and control
- Temperature, weight, airflow and current signals feed the embedded platform; firmware supports the specified automatic operating modes.
- Communication
- Wi-Fi and LTE provide network connectivity. MQTT carries the remote device-control communication through the server.
- User software
- Desktop and mobile interfaces provide access to the connected system, including mobile configuration.
Technical Details
| Parameter | Specification |
|---|---|
| Board dimensions | 120 × 90 mm |
| Processing | STM32 |
| Measurement functions | Internal/external temperature, product weight, airflow and current consumption |
| Data acquisition component | 24-bit ADC |
| Connectivity | Wi-Fi and LTE |
| Cellular hardware | Quectel LTE module and eSIM |
| Remote protocol | MQTT |
| Operation | Remote control and automatic modes |
| Local storage | Flash memory |
Result
The resulting design consolidates equipment sensing, automatic operation and network communication in a single platform. It connects the local control functions to server-based commands and application settings.
