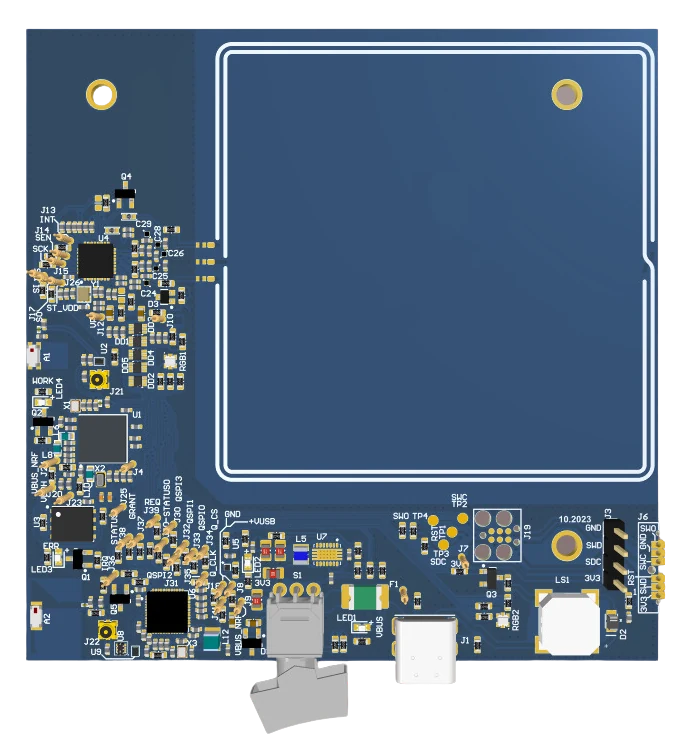

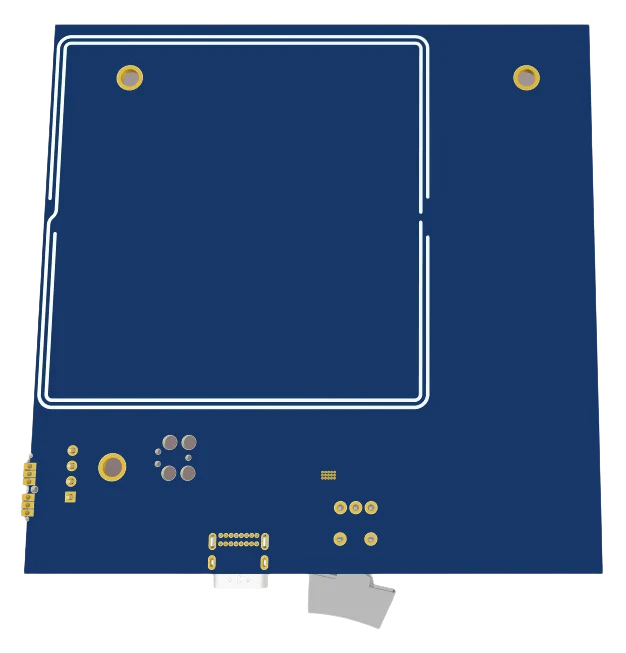

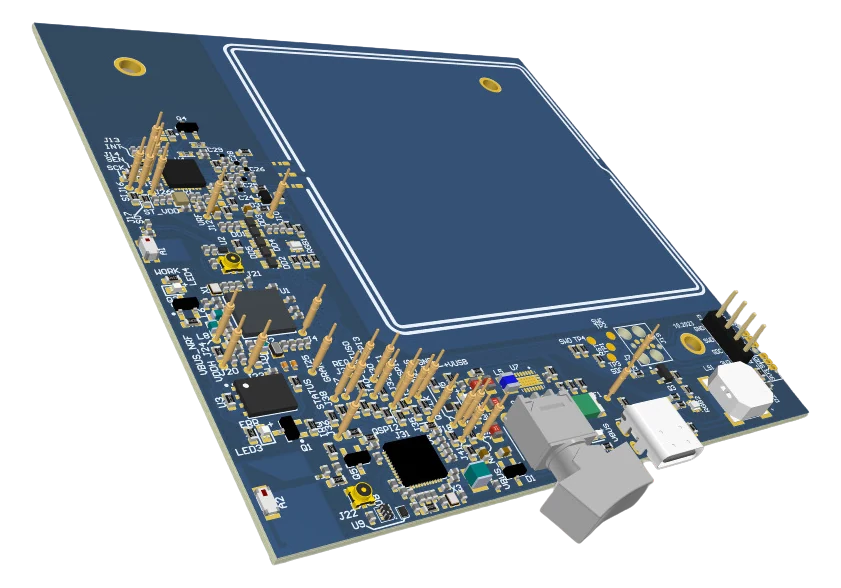

RFID Reader Board
A custom RFID platform that reads tags and sends identification data over Wi-Fi for use by desktop or server systems.
Overview
The RFID Reader Board identifies RFID tags and sends the resulting data over Wi-Fi. A dedicated RFID controller and onboard antenna perform the reading function, while Nordic processing connects identification to the rest of the system.
- Connected Devices
- RFID
- nRF5340
- Wi-Fi
- Data Transfer
The platform makes the collected data available to desktop or server-side software.
Challenge
Combine the RFID reading interface, local processing and network communication on one custom board. The system needs to carry identification data from the physical tag to the software that uses it.
What We Did
HTS developed the custom reader electronics, integrating the RFID controller and antenna with an nRF5340 processor, flash memory and Wi-Fi connectivity. The design connects tag reading to network data transfer.
System
| Subsystem | Function |
|---|---|
| RFID controller and antenna | Read tag identification data. |
| Nordic nRF5340 | Handle the embedded processing. |
| Flash memory | Provide local storage. |
| Wi-Fi interface | Transfer identification data to external software. |
Technical Details
| Parameter | Specification |
|---|---|
| Board dimensions | 130 × 120 mm |
| Processing | Nordic nRF5340 |
| Identification | RFID |
| RFID antenna | Onboard |
| Network interface | Wi-Fi |
| Local storage | Flash memory |
| External integration | Desktop or server access to identification data |
Result
The design combines RFID reading and Wi-Fi transfer on one board, connecting tag identification to desktop and server workflows.
